High-End PCB Conveyor 460mm Max PCB Width With Automatic Rail Width Adjustment

Name: HighEnd PCB Conveyor 460mm Max PCB Width With Automatic Rail Width Adjustment
Brand: INFITEK
Price: 1 USD

Brand Name : INFITEK

Model Number : 0.8M to 1M Single Rail High End Inspection Conveyor - 460mm max PCB auto width adjust

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : Wooden Crate

Application : Ergonomic Design Inspection Conveyor

Description : 460mm Automatic Width Adjustment Inspection Conveyor - 0.8M to 1M

Brand : INFITEK

Model : 0.8M to 1M Single Rail High End Inspection Conveyor - 460mm max PCB auto width adjust

Rail Width : Adjustable Rail Width up to 460mm

Available length : 0.8M, 1M - or specified

Warranty : 1 Year

Reliability : industrial grade design

Packaging : Wooden Crate or Wooden Box

Contact Now

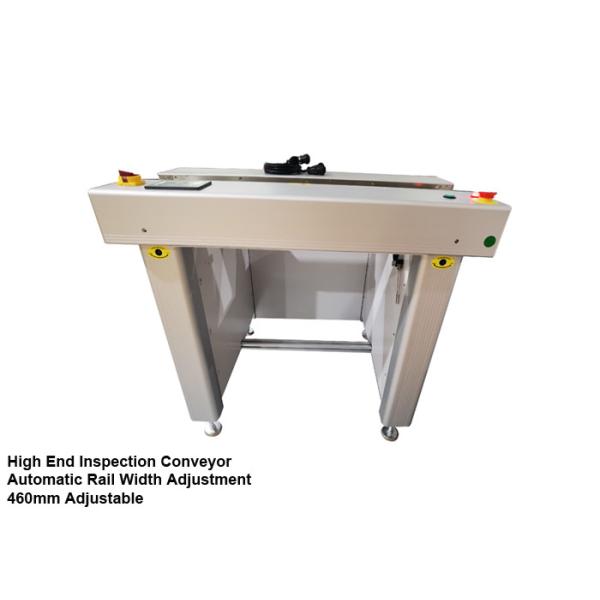

0.8M to 1M Single Rail High-End Inspection Conveyor with Automatic Rail Width Adjustment - 460mm max PCB width

The INFITEK 0.8M to 1M Single Rail High-End Inspection Conveyor with Automatic Rail Width Adjustment is an SMT conveyor designed to help reduce stress and arms fatigue for operators who will use this station in the manual visual inspection process. This board handling equipment has a solid design to endure durability. It also has features that ensure the safety of the user and uses branded parts to ensure quality and durability. the 0.8M to 1M Single Rail High-End Inspection Conveyor has automatic rail width adjustment and can pass PCBs with a max size of 460mm and below. This SMT conveyor system has Inspection mode and Automatic mode (bypass mode) function settings and accurate sensor stop position.

HIGH-END INSPECTION CONVEYOR
Single Track - Automatic Rail Width Adjustment
Applicable PCB Size: 460mm max width
Conveyor Length: 0.8M, 1M - or specified

FEATURES:

Modular Design
Its Solid design improves the machine's stability
With Inspection mode and Automatic mode (bypass mode) function settings
With an accurate sensor stop position
The ergonomic design makes the operator's arms less prone to fatigue.
Machine length can be customized according to customer requirements
The number of stops can be customized according to customer requirements
With variable speed control
Precise and durable laser-cut stainless steel rail with smooth and safe edge
SMEMA interface compatible
Automatic Rail Width Adjustment

TECHNICAL PARAMETERS
Description	This device is equivalent to an SMD machine or operator testing station of PCB assembly
Belt Type	Antistatic oblate belt
Conveying Speed	0.5-20M/min or customer specified
Power supply	AC1P110V/220V
Power	Max 100VA
Transport height	900±20mm (or customized)
Transport direction	From left to right or right to left

OPTIONAL CONFIGURATION
Motorized width adjustment
1	PLC control
2	Touch Screen
3	Width Adjustment by motor
4	Automatic Width Adjustment
